Description

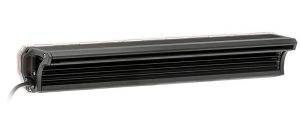

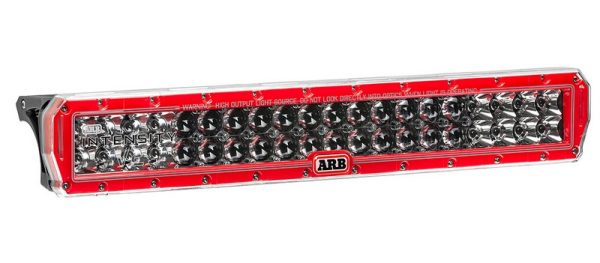

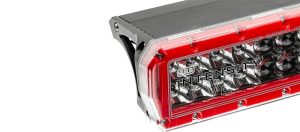

AR40 V2 Intensity LED Light Bar for 2020+ Defender 90/110/130

Engineered in Australia and manufactured in the United States using the same patented lens/reflector technology as ARB’s existing Intensity LED driving lights, the ARB Intensity V2 LED light bar utilises Hyperspot™ optics and advanced flood optics to intensify the light output of the 40 OSRAM LEDs (2 rows of 20) encased in a virtually indestructible polycarbonate lens and powder coated, extruded aluminium body with high-pressure die-cast end caps.

Note: Intensity AR40 V1 LED Light Bar featured in video.

Designed to integrate with the top tube of the bull bar, the AR40 V2’s extruded alloy housing wraps around the tube, providing a low-profile integration with the bar work to maximise airflow to the cooling system and reduce obstructions. Its unique tube clamp mounting system sits out of view and delivers incredible stability for off-road use, eliminating vibration while being adjustable so that it won’t interfere with aerial mounting tabs, leaving them free to be used for their intended function.

Performance is paramount, with a heat sink that has over 435,000 mm² of surface area, allowing the light bar to dissipate heat quickly and operate at optimum efficiency even when the vehicle is stationary or at low speed.

Integral to the design is a range of virtually indestructible, moulded polycarbonate covers, hard-coated for scratch and UV resistance and available in a range of colours to further enhance protection from the elements.

OSRAM LEDS WITH HYPERSPOT™ TECHNOLOGY


To provide an intense amount of light in all driving conditions, the AR40 Intensity V2 Light Bar utilises OSRAM Giant LEDs to produce up to 25,080 lumens of raw light output (AR40CV2). For a single AR40CV2 combo, this means a light throw of 926m @ 1Lux and 40m of spread across the front of the vehicle. Plus, the warmer colour temperature (5700K) assists driver comfort and reduces eye fatigue.

A refined optic used to focus and intensify the light output as well as drive the OSRAM LEDs a great distance down the road, the Hyperspot™ technology also maintains clarity in the beam and controls the beam pattern to the correct area without spilling into unnecessary areas.


FEATURES
• A unique moulded rubber seal sits between the polycarbonate lens and cast aluminium body to create a watertight and dustproof seal, allowing the light to achieve an IP68 rating – meaning protection against dust ingress and submersion up to 3 metres.
• Virtually indestructible, UV resistant polycarbonate lens provides protection against road debris.
• High pressure cast aluminium end caps contains a Gore® breather, enabling expansion and contraction of internal air during temperature fluctuations, without allowing water or dust ingress.
• Large, extruded aluminium body provides superior strength and acts as a heat sink to draw heat generated from the electronics away from the LED array, increasing the efficiency and life of the LEDs.
• Mounting kits are available to suit three different tube diameters and are designed specifically to fit ARB bull bars. Constructed from extruded aluminium, with stainless steel fasteners, the unique mounts provide a solid clamp between the light and the tube, minimising vibration and movement. A pedestal mounting kit is also available for bull bar pan or roof mounting options.
• Each Intensity LED light bar is built to last, featuring over/under voltage protection, integrated thermal management and protection against radio frequency and electromagnetic interference.


[ngg src=”galleries” ids=”19″ display=”basic_imagebrowser”]

AR40 BEAM LUX SPECIFICATIONS

[ngg src=”galleries” ids=”20″ display=”basic_imagebrowser”]
For an integrated fit to your vehicle, mounting kits are designed specifically for ARB bull bars and are available in three sizes to cater for different tube diameters. Each kit is manufactured from extruded aluminium and incorporates stainless steel fasteners.

[ngg src=”galleries” ids=”21″ display=”basic_imagebrowser”]
For increased versatility, an alternative to the bull bar mount is the pedestal mounting kit, enabling fitment to the pan of a bull bar or a roof rack. All fasteners are manufactured from stainless steel, with mounting hardware manufactured from a combination of aluminium and steel.

[ngg src=”galleries” ids=”22″ display=”basic_imagebrowser”]
Manufactured from polycarbonate and hard coated for scratch and UV resistance, these covers will protect your Intensity light bar from the elements. Available in clear, amber and solid black.

[ngg src=”galleries” ids=”23″ display=”basic_imagebrowser”]

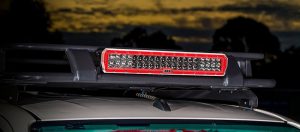

The AR40 Intensity roof rack mount bracket was introduced due to popular demand and utilises the AR40 hardware for the perfect fit. This mounting system provides a versatile option to suit the Rhino-Rack Pioneer® platform, tray, tradie & universal range.

The AR40 Rhino-Rack mount features 5mm powder coated steel brackets whilst being tilt-adjustable, lateral and longitudinal adjustable (not vertical adjustable).

*Shown with 2 kits fitted to suit two AR40 light bars.

[ngg src=”galleries” ids=”24″ display=”basic_imagebrowser”]

Additional information

SPECS

AR40CV2 COMBO

Input

9-36V DC

Current Draw

21A at 14.4V

Lux at 1m

926

Operating Temperature

-40°C to 63°C (-40°F to 145°F)

Weight

4.05kg

Power

305W

Output

25.080 raw lumens

Spread

6° spot / 20° flood

Colour Temperature

5700k

UV Emissions

0

Dimensions

560mm x 91mm x 125mm
