Description
REVERSING CAMERAS AND MONITOR SYSTEM
Designed to improve visibility at the rear of your van, 2WD or 4WD, the reversing camera and monitor system is perfect for reversing in tight places, residential areas or connecting a trailer, camper or caravan to your vehicle.
ARB REVERSING CAMERA AND MONITOR RANGE
Offering exceptional reversing visibility in any circumstance, ARB’s range of reversing cameras and monitoring systems increase vehicle safety and help take the stress out of reversing.
ARB’s reversing camera and monitoring systems, trailer camera kits and auxiliary cameras extend the driver’s vision to the rear, side, roof or front of the vehicle, providing all round safety and increased visibility.
Designed with flexibility and superior performance in mind, there is a multitude of options to suit, dependent on your intended application.
FEATURES

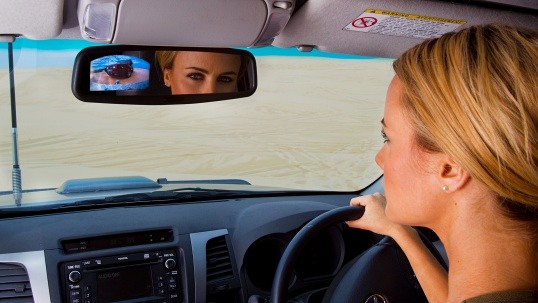

– Replacement rear view mirror incorporates high resolution 3.5″ OLED screen and speaker
– OLED screen automatically activates when vehicle is in reverse manual activation via rear view mirror button allows full time vision
– System incorporates a quality CMOS camera with inbuilt microphone and 160 degree wide angle lens
– Camera is dustproof and waterproof to IP68 rating metre wiring loom suitable for commercial vehicles and wagons
– Unique licence plate mounting bracket for camera utilises existing fasteners
– Two camera inputs allows the option of fitting an additional auxiliary camera
– ARB reversing camera compatible with the Hema Navigator systems (please contact ARB for fitting information and requirements)
CAMERA SPECIFICATIONS
– Effective Pixel Resolution: NTSC 510 x 492
– Image Sensor: 1/4″ OV7950 Digital
– Lens: 160° Wide Angle
– Immersion Protection: IP68
– Sound (dB): Better than 48dB
– Operating Temperature Range: -30°C to 70°C (-22°F to 158°F)
– Illumination: 1.0 Lux
– Video Output: 1Vp-p (75ohm)
– Voltage: 12/24 VDC
– Power Consumption: Max 200mA
MONITOR SPECIFICATIONS
– Screen Size: 3.8″ OLED (16:9)
– View Angle (Up/Down): 170°
– View Angle (Left/Right): 170°
– Brightness (cd/M2): 200
– Contrast Ratio: 10,000
– Resolution (Pixels): 391680
– Signal System: PAL/NTSC Auto
– Voltage: 12/24 VDC
– Power Consumption: < 3W
