Description

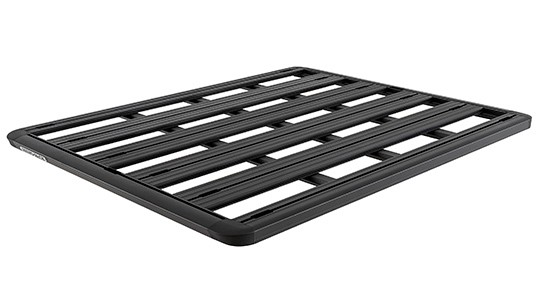

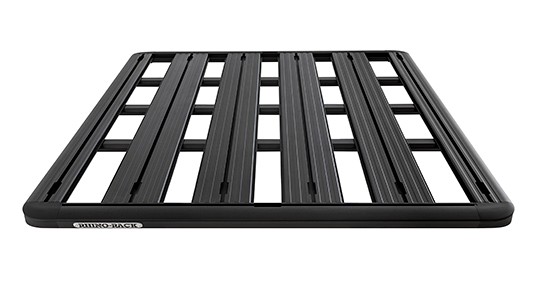

RHINO-RACK PIONEER ROOF RACK

LOW-PROFILE, MODULAR DESIGN CONSTRUCTED FROM ALUMINIUM
Fibreglass reinforced nylon corners allow access to internal channels for integrated wiring
Black powder coat finish
Optional side rails available
Channel on underside of front and rear: enable easy mounting of a wide range of accessories (i.e. lights)
Additional accessory channels on the top of the front and rear extrusions: allow for additional accessory mounting
Integrated measuring strip: helps easily position underbars for faster installation

AVAILABLE SIZES

1328MM LENGTH
1328mm x 1236mm 27kg (4 planks)
1328mm x 1376mm 21kg (5 planks)
1328mm x 1426mm 21.1kg (5 planks)

1528MM LENGTH
1528mm x 1236mm 18.7kg (4 planks)
1528mm x 1376mm 21.7kg (5 planks)
1528mm x 1426mm 23.1kg (5 planks)

1828MM LENGTH
1828mm x 1426mm 28.7kg (5 planks)

1928MM LENGTH
1928mm x 1236mm 25.3kg (4 planks)
1928mm x 1376mm 30kg (5 planks)

2128MM LENGTH
2128mm x 1236mm 27kg (4 planks)
2128mm x 1426mm 32.4kg (4 planks)

928MM LENGTH
928mm x 1426mm 15.8kg (5 planks)

2528MM LENGTH
2528mm x 1586mm 40kg (5 planks)

2728MM LENGTH
2728mm x 1465mm 38.5kg (5 planks)
