Description

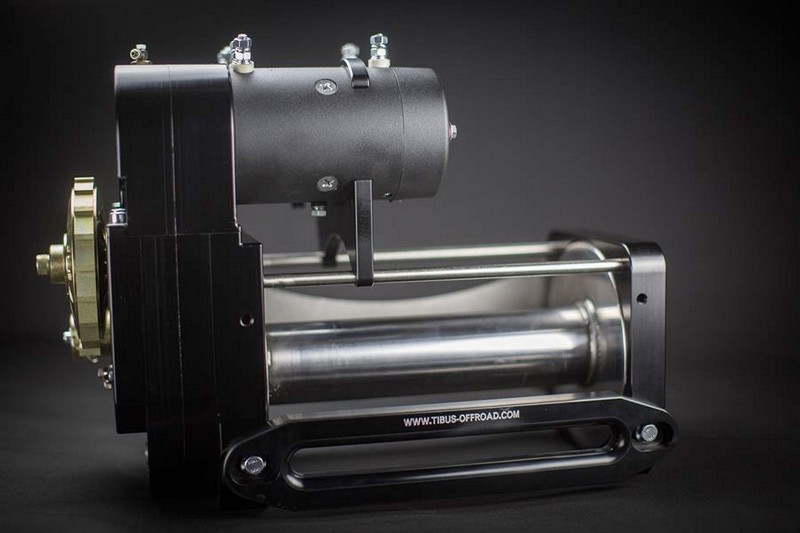

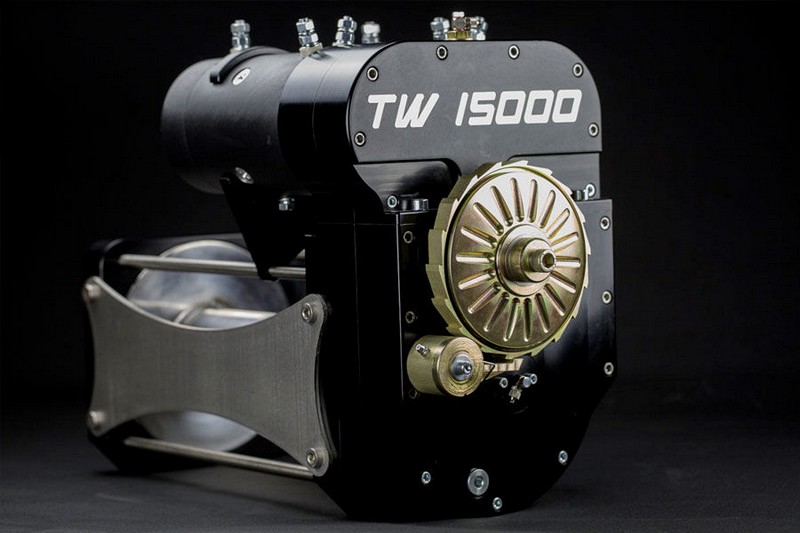

TIBUS Highspeed Winch TW 15000 for 1990-2016 Defender 90/110/130
This winch is designed for the toughest situations in competitions. Only the best materials have been selected to ensure the winch operates reliably at all times and under any conditions. Line speed ranges from 25 m/min up to 70 m/min, with pulling force ranging from 4 to 16 tons.
Versions

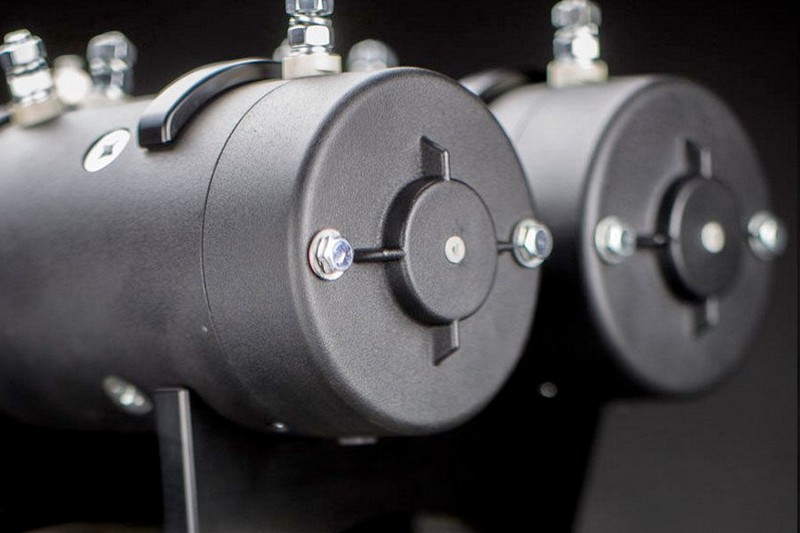

We provide motors with 12 or 24 volts, ranging from 6.8 to 8 HP. We can tune our high-performance winches perfectly to fit your vehicle and intended use. Please contact us for more information.

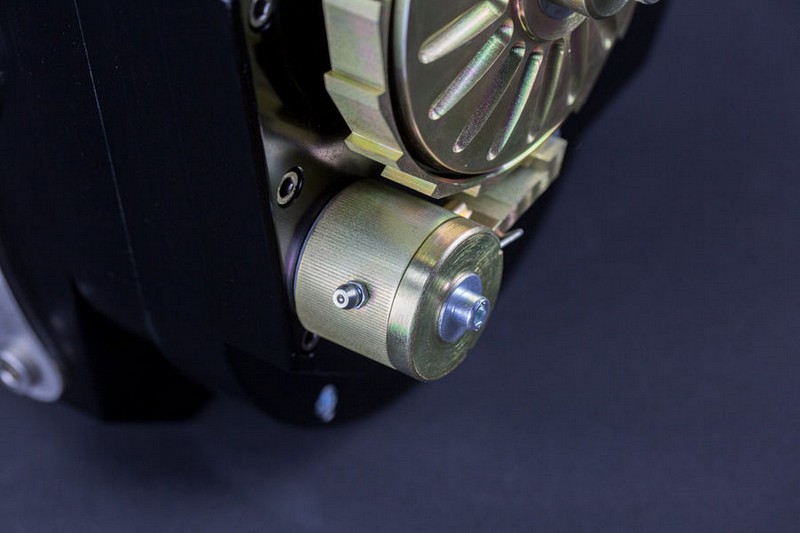

Brake
The TIBUS high-speed winch TW 15000 is equipped with an external brake. All components are CNC-machined from CR-4340 steel solid materials and zinc-plated for extra corrosion protection. All rotating parts are lubricated for optimal performance.
Ventilation
To prevent excess pressure in the winch housing, the TW 15000 features a vent hose connector to release expanding air accumulated due to heat in the gearbox.
Free spool

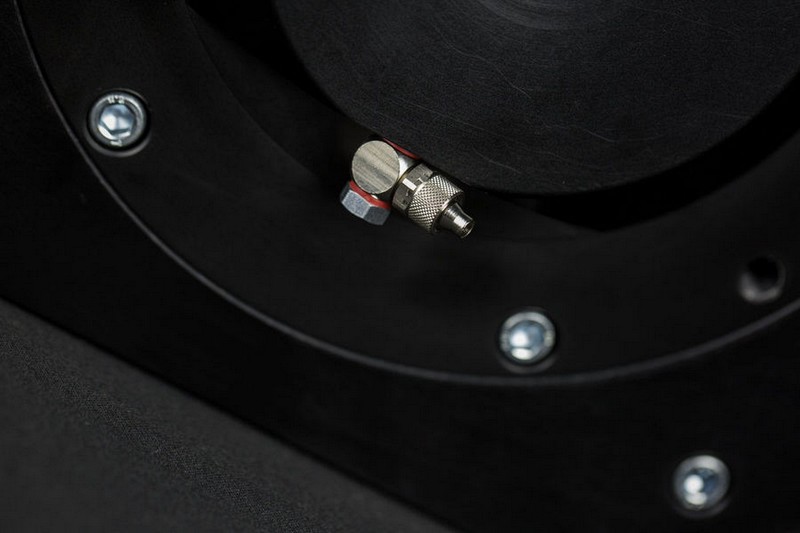

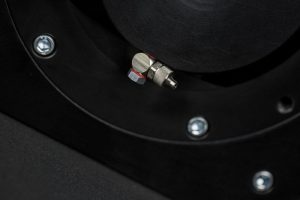

The unlocking and locking of the free spool of the drum works pneumatically, which is much more reliable than electrical solutions. The compressed air connections are protected against weather influences and designed with high-quality metal. The picture shows the air connector used to unlock the drum to the free spool.

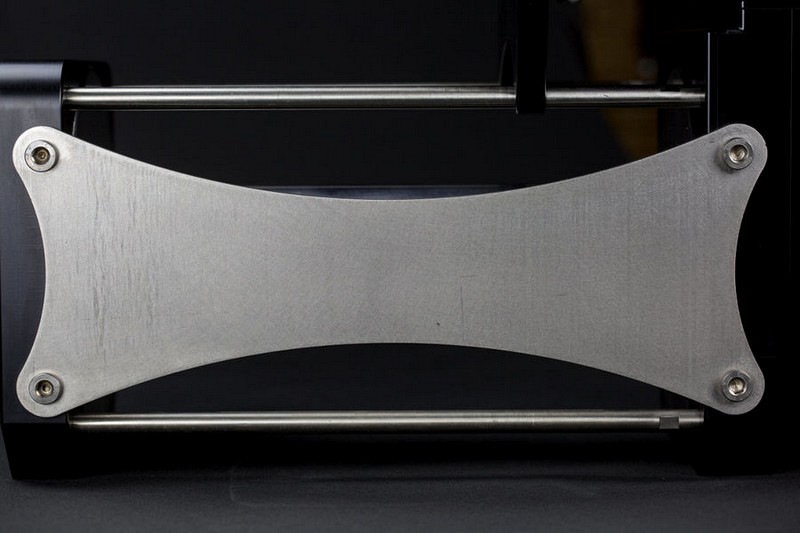

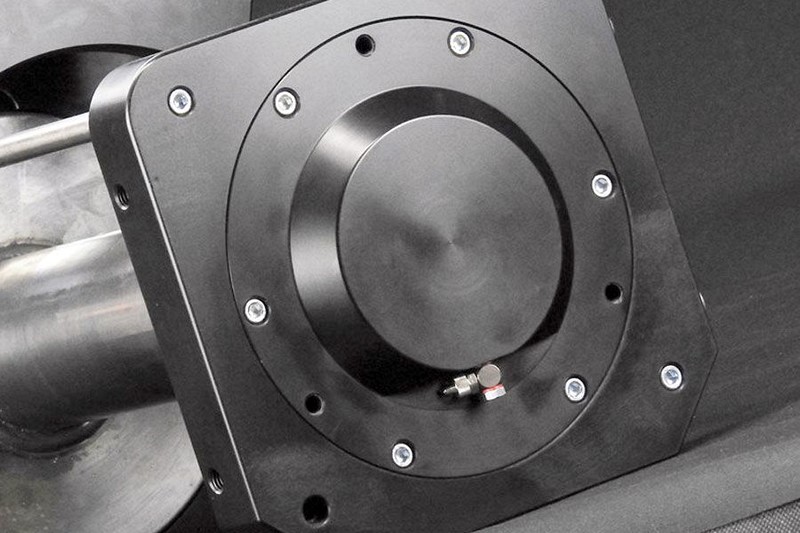

Maintenance access
In contrast to other makes, the TW 15000 allows easy access to the free spool system by simply removing the cover. This is a major advantage for inspection and maintenance.
