Description

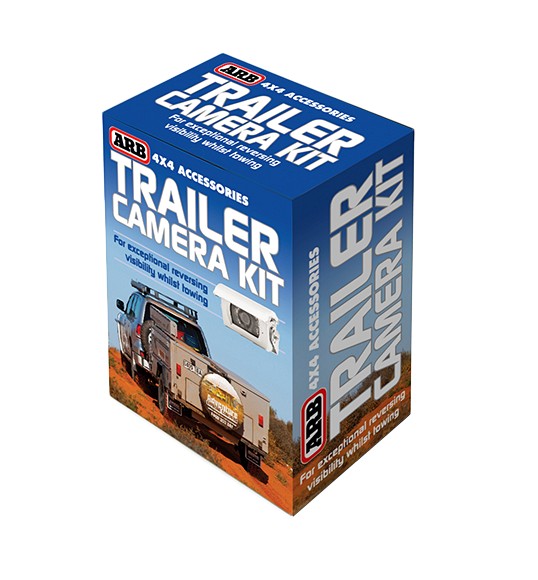

TRAILER CAMERA KIT

Perfect for tourers, the ARB trailer camera kit is designed as a ‘bolt on’ accessory for the ARB reversing camera and monitor system.

This kit provides users with rear vision from the camper, caravan or trailer.


ARB REVERSING CAMERA AND MONITOR RANGE
Offering exceptional reversing visibility in any circumstance, ARB’s range of reversing cameras and monitoring systems increase vehicle safety and help take the stress out of reversing.

ARB’s reversing camera and monitoring systems, trailer camera kits and auxiliary cameras extend the driver’s vision to the rear, side, roof or front of the vehicle, providing all round safety and increased visibility.

Designed with flexibility and superior performance in mind, there is a multitude of options to suit, dependent on your intended application.


FEATURES
– Plug-n-play system delivers rear view camera capabilities to a range of trailers
– Fully compatible with ARB’s reversing camera and monitor system (sold separately)
– Activation of the trailer camera automatically overrides the vehicle camera when the trailer cords are connected
– Quality Sony CCD imager with inbuilt microphone designed to work effectively in all environments
– Heavy duty mounting bracket ensures camera can be rotated 120 degrees for optimal view
– Strong, powder coated aluminum housing
– Adjustable visor for glare reduction
– Dustproof and waterproof to IP68 rating
– Infrared distance of up to 10 meters for vision at night
– Heavy duty waterproof cords and connectors
– 15 metre cord to cater for a vast array of trailers/campers/caravans


TRAILER CAMERA SPECIFICATIONS
– Image Sensor: 1/4″ Sony super CCD
– Lens: 135° wide angle
– Pixel Resolution: NTSC 510 x 492 / PAL 500 x 582
– Infrared Sensor: Automatic control
– Infrared Distance: 10m
– Illumination: 0 Lux (IR on)
– Immersion Protection: IP68
– Operating Temperature Range: -10°C to 80°C
– Operating Voltage: 12/24 VDC
– Sound (dB): Better than 48dB
– Vibration: 5.0 G


INSTALLATION KIT SPECIFICATIONS
– Switching Box Immersion: IP68
– Switching Box Connections: S-Video 4 pin
– Camera Connection: S-Video 4 pin waterproof connectors
– Camera Cable: 0.9m with grommet (20mm)
– Camera Extension Cable: 15m (S-Video to HD connector)
– Spiral Cable: 0.6m long with a 5 pin HD connector IP68
– Tow Bar Connector: 1.5m S-Video to 5 pin HD connector IP68

Additional information

Image Sensor

1/4" Sony super CCD

Lens

135° wide angle

Pixel Resolution

NTSC 510 x 492 / PAL 500 x 582

Infrared Sensor

Automatic control

Infrared Distance

10m

Illumination

0 Lux (IR on)

Immersion Protection

IP68

Operating Temperature Range

-10°C to 80°C

Operating Voltage

12/24 VDC

Sound (dB)

Better than 48dB

Vibration

5.0 G

Camera Connection

S-Video 4 pin (Male) waterproof connectors

Camera Cable

0.9m with grommet (20mm)

Camera Extension Cable

6.5m S-Video (Male) to S-Video waterproof connector (Female)
