Description

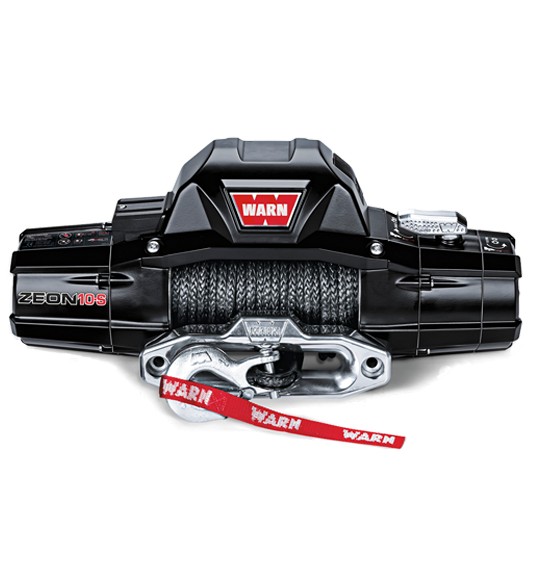

ZEON 10-S

The ZEON 10-S combines all of the aesthetic and exceptional design features of the ZEON 10 winch with the inclusion of Warn’s lightweight Spydura synthetic rope. Though lightweight, there is nothing flimsy about the Warn Spydura synthetic rope and its temperature resistant first layer, abrasion resistant and ballistic nylon sliding sleeve and polished hawse fairlead.



PERFORMANCE DATA



WARN ZEON WINCHES

Engineered from the ground up, the ZEON winch range sets a new standard in Warn’s premium winch range. Smoother, quieter, stronger and better sealed with an IP68 rating makes this range ready for serious action.

A convertible control pack provides plenty of flexibility by allowing the pack to be removed and mounted separately from the winch. Not only does this allow the winch to be mounted in tight spaces, it also provides the option of a more low profile look.

The ZEON winch range also includes a limited lifetime warranty.


FEATURES
• Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks.
• Satin black powder coated finish with stainless steel fasteners and clutch lever to inhibit corrosion.
• Unique exterior incorporates dust and water rating to IP68 to keep the elements out.
• Lightweight, large diameter winch drum reduces rope wear, and has an integrated rope anchor for easy rope installation.
• Available with steel or Warn Spydura synthetic rope, the Zeon offers pulling capacities from 8,000lbs to 12,000lbs.
• New design planetary gear train and series wound motor delivers fast, quiet and reliable pulling power.

Additional information

Maximum Load – (Single Line)

4536kgs (10,000lbs)

Motor

12V DC, series wound

Control

Remote switch, 3,7m lead

Gear Train

3 Stage Planetary

Gear Ratio

216:1

Clutch – (Freespooling)

Rotating ring gear

Cable

9.5mm x 30.5m Spydura synthetic

Brake

Automatic mechanical cone

Dimensions With Control Pack

L 61.59cm x W 18.16cm x H 26.71cm

Dimensions Without Control Pack

L 61.59cm x W 18.16cm x H 19.9cm

Drum Diameter/Length

8cm/22.9cm

Weight

34kg
